C2YC   Composite to S-video (Y/C) Converter

Products > S-video Format Converters > C2YC

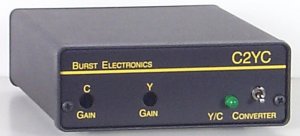

Composite to S-video (Y/C) Converter

The C2YC format converter accepts an NTSC composite video input and splits it into Y/C (also called S-Video, S-VHS and Hi8). The C2YC converter is a 2 H Digital adaptive comb filter giving high precision Y/C separation. The Y (luminance) and C (chromance) signal levels can be individually adjusted. $

  • Splits Composite into Y/C
  • Digital Comb Filter separation
  • High Precision Y/C separation
  • Loop thru input with termination resistor

Follow $ symbols to price list.

Download manual


Specifications - C2YC

Input/Output: 1 Volt standard video
Input Connector: Composite Video, BNC
Input Termination: 75 Ohms 1% or HiZ
Bandwidth: 10 MHz @ 0.5 dB
Output Impedance: 75 Ohms 1%
Output Connector: S-video, 4 Pin MiniDIN
Output Protection: Open or Short, infinite duration
S/N: 60 dB
Size: 4.1 W x 1.5 H x 5.5 D inches

DC Powered: 11-14 Vdc (see chart for current requirements)
Wall module (included): 120 VAC 60 Hz, 12 Vdc 500 mA, UL Listed
Warranty: Two Years Parts and Labor
