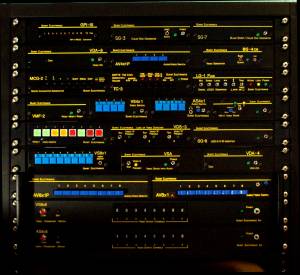

Rack Mounts, Sizes and Current Requirements

Home > Unit sizes and current requirements

Size Codes, Current Requirements, S-Video by Model
Model Size Current
(note 1)
S Video
(note 2)
Rack Mount
ADA-4 Q 70 N/A RM-4
AS4x1 Q 150 N/A RM-4
AS8x8 1U 250 N/A RM-EAR
AV4x1P T N/A No RM-3
AV8x1A H 200 N/A RM-2-1
AV8x1P H N/A No RM-2-1
BG-2 MB2 250 Yes RM-6-2
BG-3 T 375 No RM-3
BG-4 Q 300 Yes RM-4
BG-5 Q 300 Yes RM-4
BG-7 T 375 No RM-3
C2YC Q 200 Yes RM-4
DSR4x1 Q 600 N/A RM-4
DSR8x1 T 600 N/A RM-3
DV-1 MB 5V 0.5A Yes RM-6-1
DV-2 MB 5V 0.5A Yes RM-6-1
DV-4 Q 5V 0.3A Yes RM-4
DVA-1 T 5V 1A No RM-3
F2B R 100 No N/A
GPI-10 Q 100 N/A RM-4
GPI-20 T 200 N/A RM-3
HDLG T 500 N/A RM-3
LG-1,4 T 300 No RM-3
MCG-2 T 300 Yes RM-3
MicroDA M 150 No N/A
Pixie-FS MB 5V 0.5A Yes RM-6-1
RC8x1 note 4 note 4 N/A RM-3
SG-2 M 100 Yes N/A
SG-3 T 250 No RM-3
SG-7 T 350 No RM-3
TC-3 T 350 Yes RM-3
VDA-2EQ M 140 No N/A
VDA-4 Q 150 Yes RM-4
VDA-8 T 200 No RM-3
VDS M 125 No N/A
VDS-3 T 300 No RM-3
VM-2 Q 120 Yes RM-4
VMF-2 note 3 250 Yes RM-4
VS4x1 Q 250 Yes RM-4
VS8x1 T 300 No RM-3
VS8x8 1U 450 Yes RM-EAR
VSA Q 250 No RM-4
YC2C M 100 Yes N/A

Sizes (inches)
  W H D Rack Mounts
R 2.5 1.8 6.0 N/A
M 4.4 2.4 1.2 N/A
MB 2.8 0.8 4.2 RM-6-1, 18
MB2 2.8 1.3 4.2 RM-6-2, 12
H 8.4 1.7 6.0 RM-2-1 RM-2-2
T 5.6 1.5 7.0 RM-3, 344, 334
Q 4.1 1.5 5.5 RM-4, 344, 334
1U 17 1.7   RM-EAR


Tools for the video professional

Notes:

  1. Current draw (mA) at 12 Vdc
  2. S-Video (S-VHS/Hi8) version available. Add Y/C to end of model number. Video connectors are 4 pin MiniDIN.
  3. Headend: Q, Remote: R
  4. RC8x1 dimensions: 5.6 W x 1.5 H x 2 D inches. (Fits RM-3 rack mount.)
    Draws power from VS8x1.
  5. Operating temperature range of all products is 32 F to 104 F. Humidity range is 5-85%, non-condensing.

All products made in the USA
Warranty: Two Years parts and labor
Specifications subject to change without notice
